ACS ACR122U-A9ACSA | ACR122 NFC USB

41,81 Incl. btw €52,27 Incl. btw
€34,56 Excl. btw 43,19 Excl. btw.
Op voorraad (165)

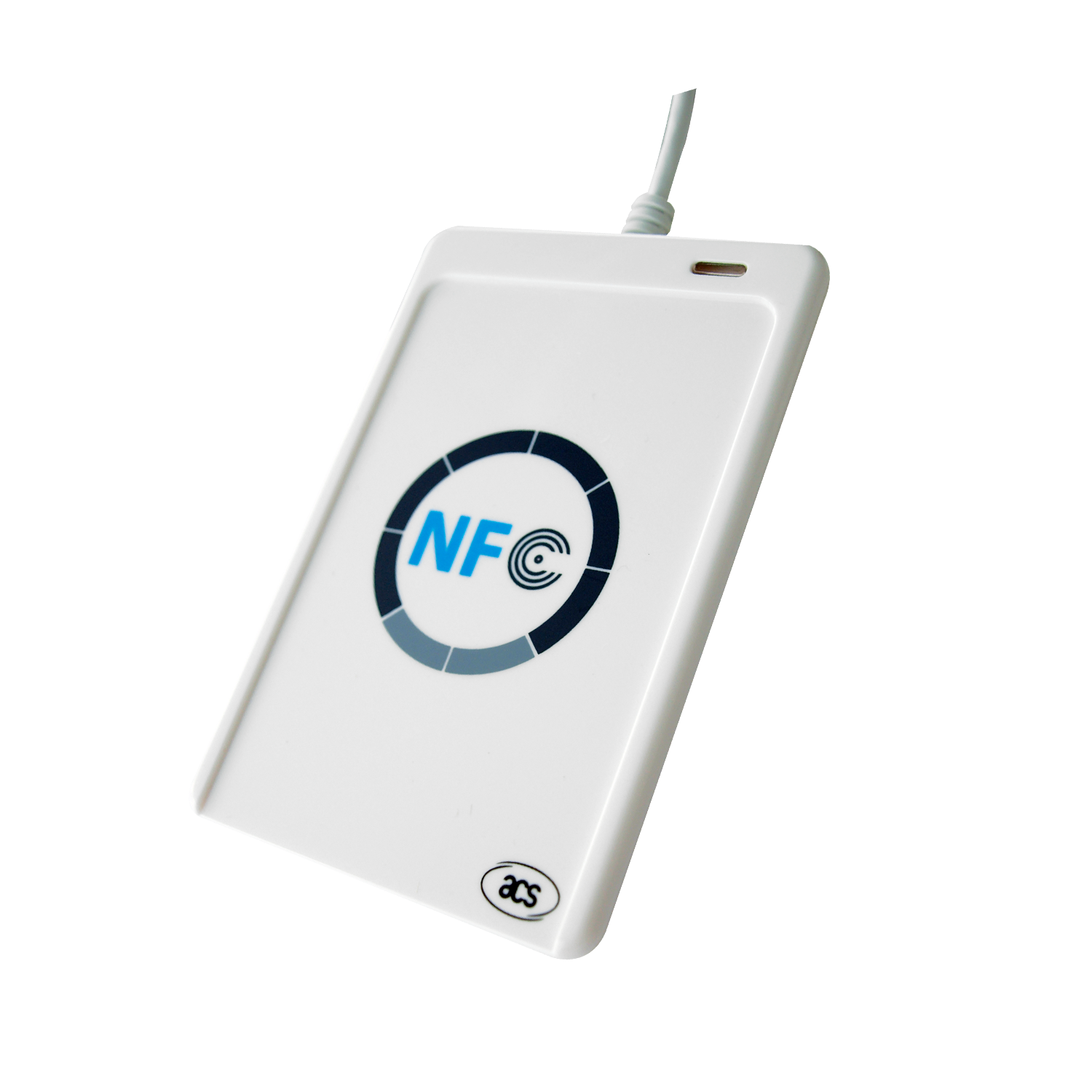

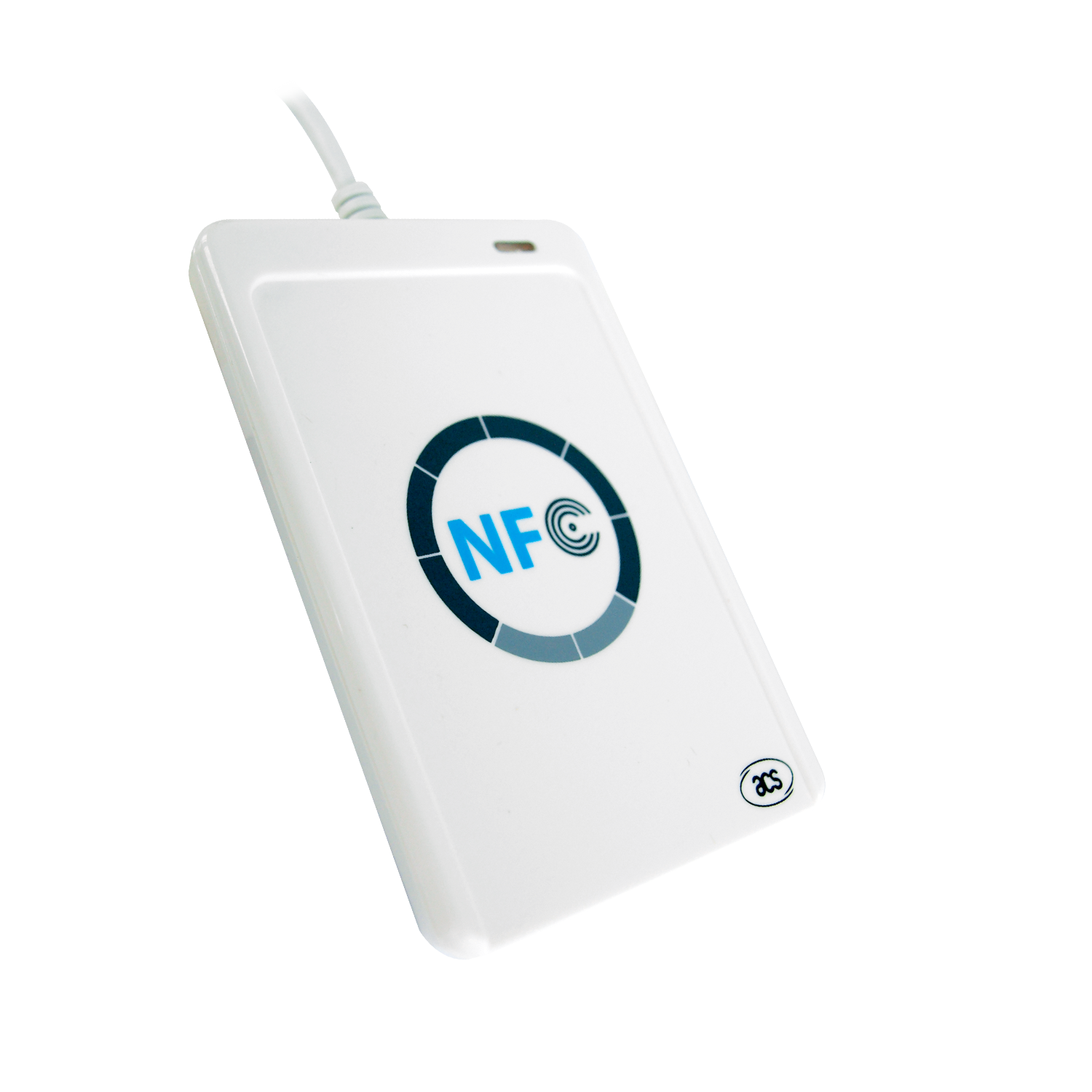

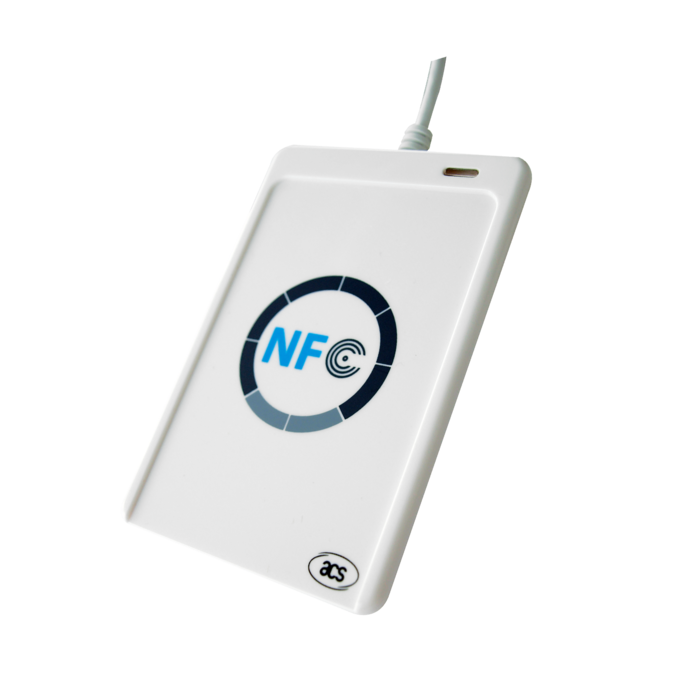

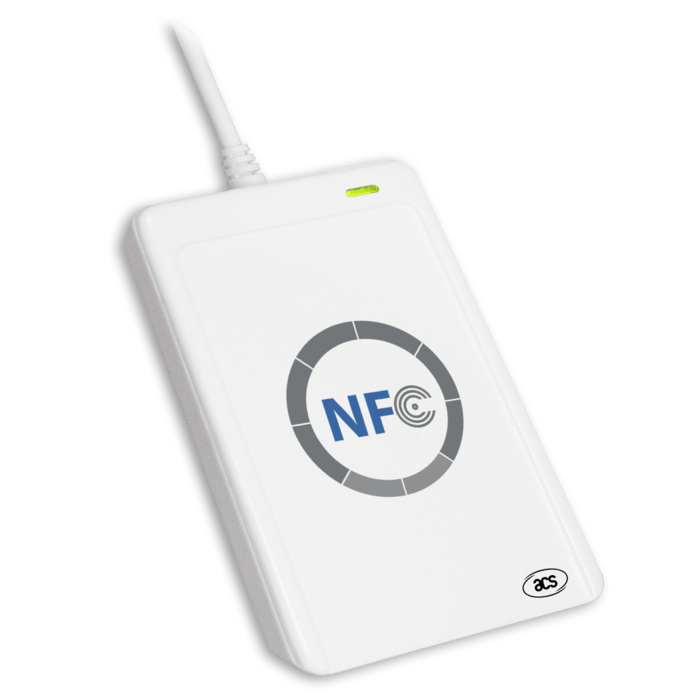

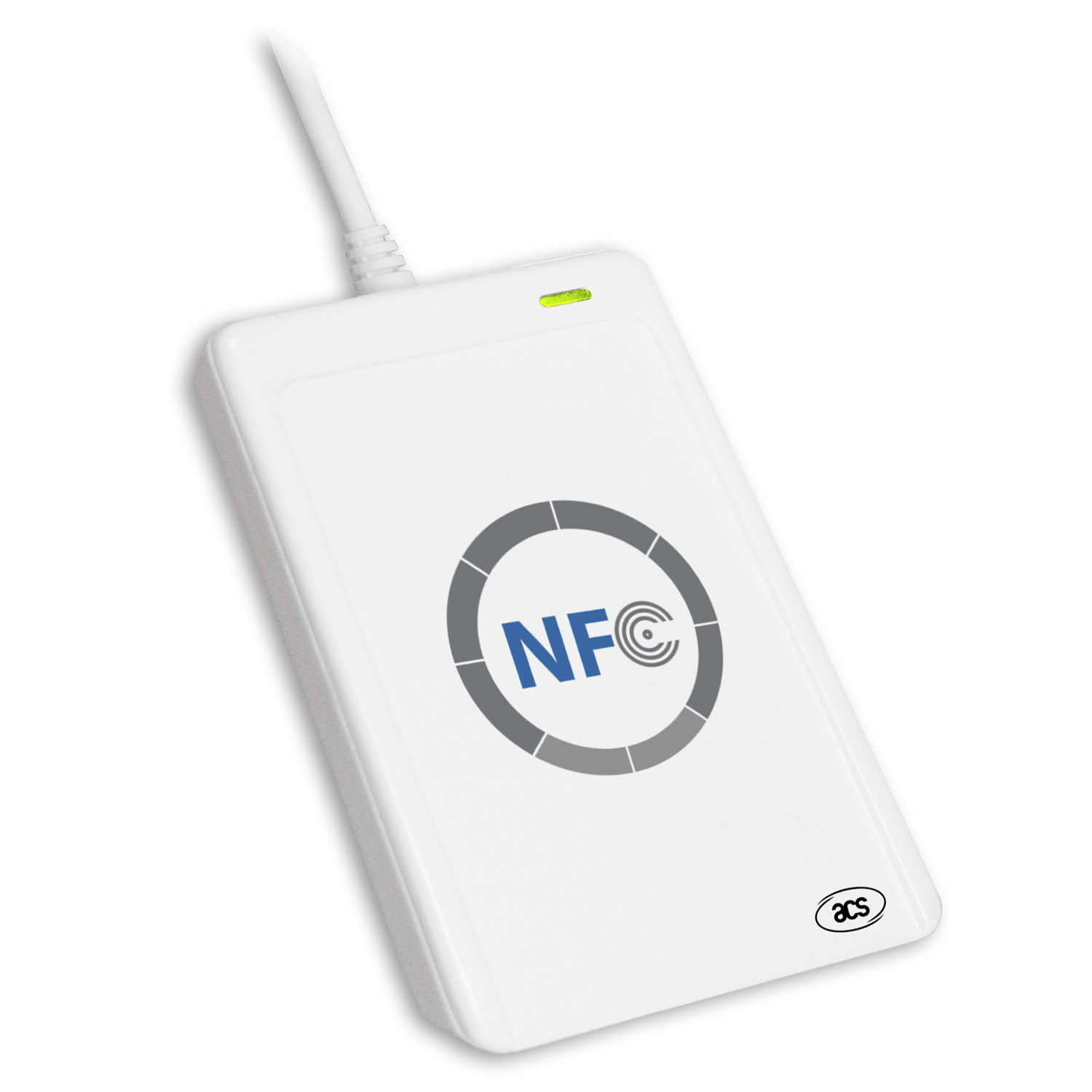

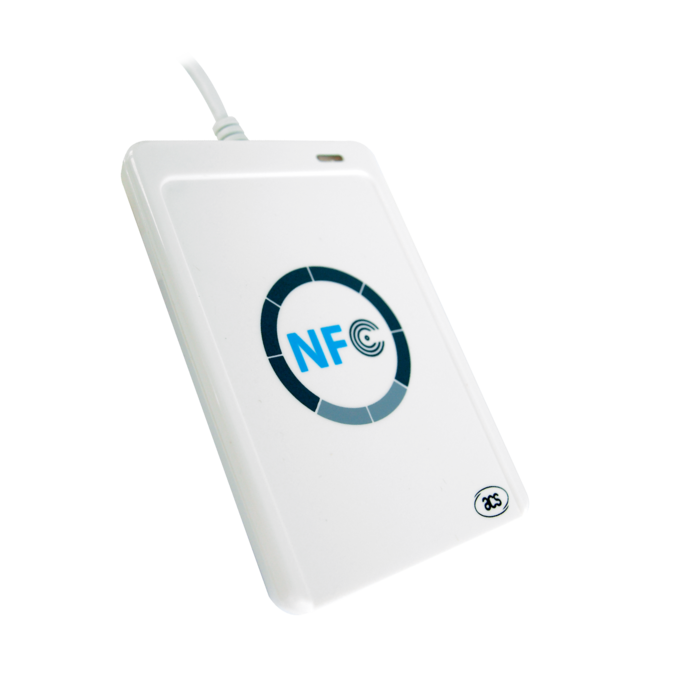

The  ACR122U NFC Reader  is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless (RFID) Technology. Lees meer
  • Lightning-fast shipping within 24 Hours
  • More then 10.000 products
  • Expert Advice and Support
  • VAT reverse charge possible after completing company details!
  • Tailored Custom Solutions to Fit Your Unique Needs
  • Extensive Stock for Immediate Availability

Specificaties

Merk:
ACS
Artikelnummer:
ACR122U-A9ACSA
EAN:
4038816195630
SKU:
ACR122U-A9ACSA
Beschikbaarheid:
Op voorraad (165)
Levertijd:
Voor 15:00 besteld, morgen in huis!

Informatie

The  ACR122U NFC Reader  is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only MIFARE ® and ISO 14443 A and B cards, but also all four types of NFC tags.

ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also read and write more quickly and efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use.

In order to increase the security level, ACR122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.

The  ACR122U NFC Reader  is ideal for both secure personal identity verification and online micro-payment transactions. Other applications of the ACR122U include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Smart Card Reader:
    • Read/write speed up to 424 kbps
    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
    • Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
    • Built-in anti-collision feature (only 1 tag is accessed at any time)
  • Application Programming Interface:
    • Supports PC/SC
    • Supports CT-API (through wrapper on top of PC/SC)
  • Peripherals:
    • User-controllable bi-color LED
    • User-controllable buzzer
  • Supports Android OS 3.1 and above

Technical specifications

Physical Characteristics
Dimensions (mm) 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
Weight (g) 70 g
USB Interface
Protocol USB CCID
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Cable Length 1.0 m, Fixed
Contactless Smart Card Interface
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE ®, FeliCa
Protocol ISO 14443-4 Compliant Card, T=CL
MIFARE ® Classic Card, T=CL
ISO18092, NFC Tags
FeliCa
Built-in Peripherals
LED 1 bi-color: Red and Green
Buzzer Monotone
Certifications/Compliance
Certifications/Compliance EN 60950/IEC 60950
ISO 18092
ISO 14443
USB Full Speed
PC/SC
CCID
VCCI (Japan)
KC (Korea)
Microsoft ® WHQL
CE
FCC
RoHS 2
REACH
Device Driver Operating System Support
Device Driver Operating System Support Windows ® CE
Windows ®
Linux ®
MAC OS ®
Solaris
Android
Warranty 1 year
More info Product PDF
