ACS ACR39U-H1ACSA | ACR39U-H1

Informatie

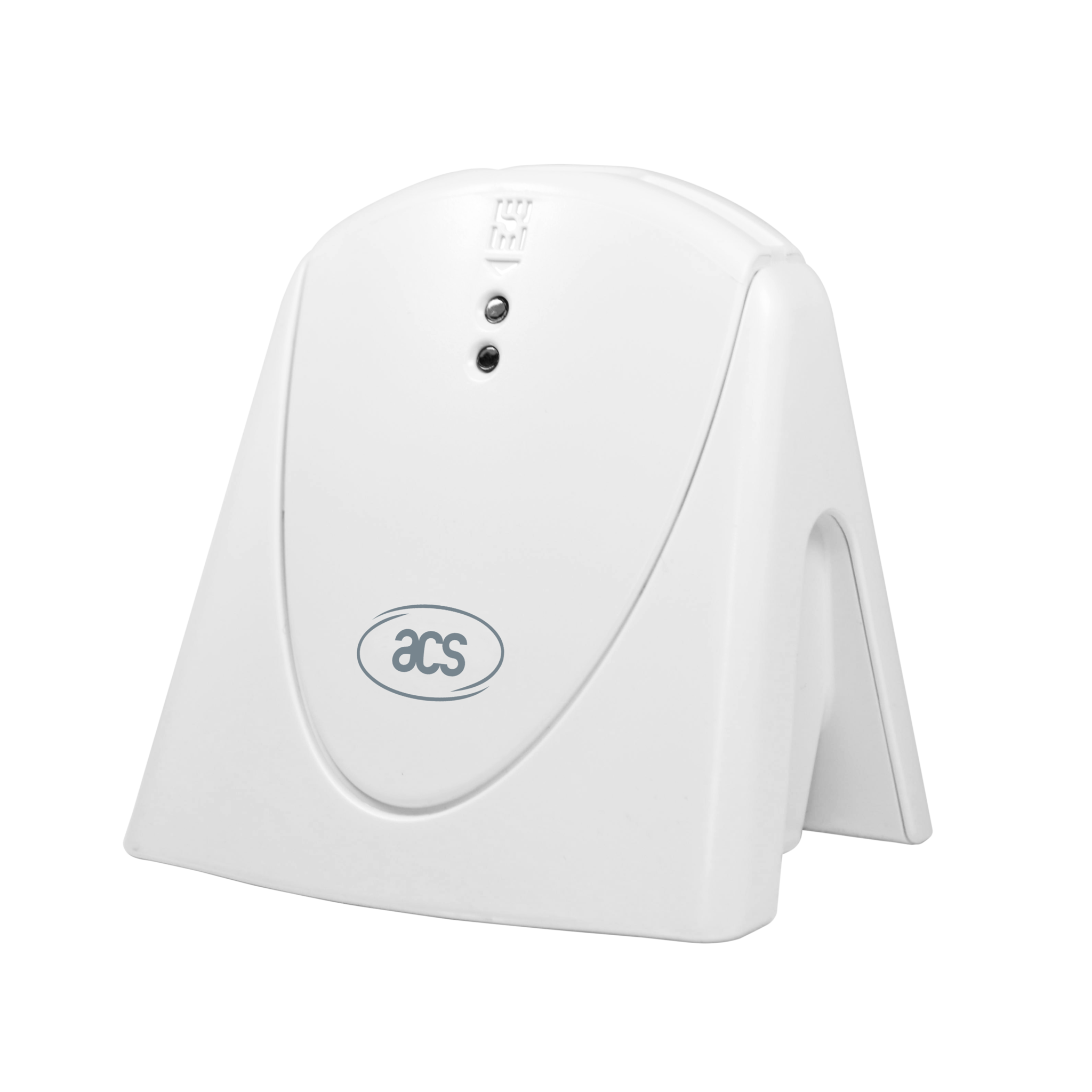

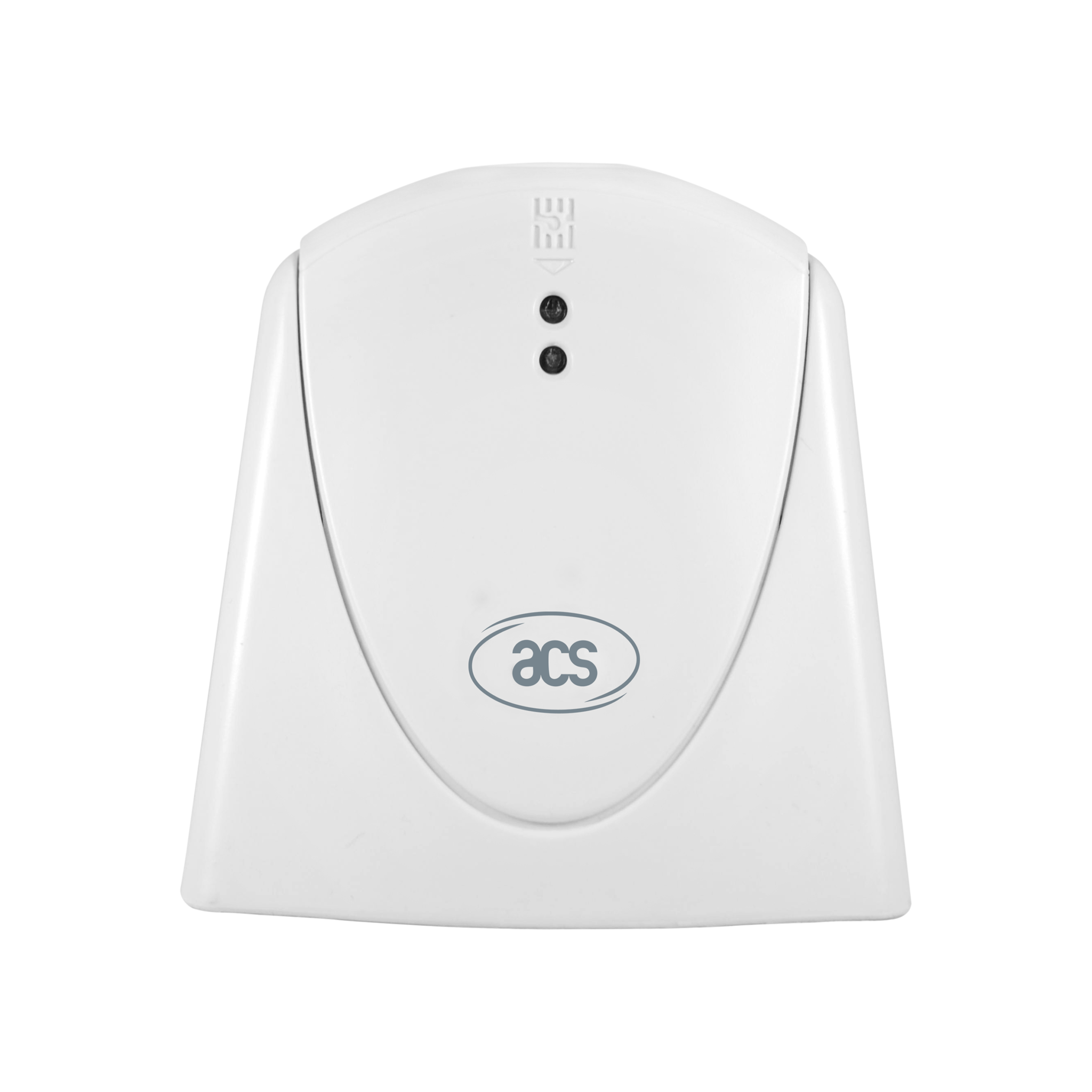

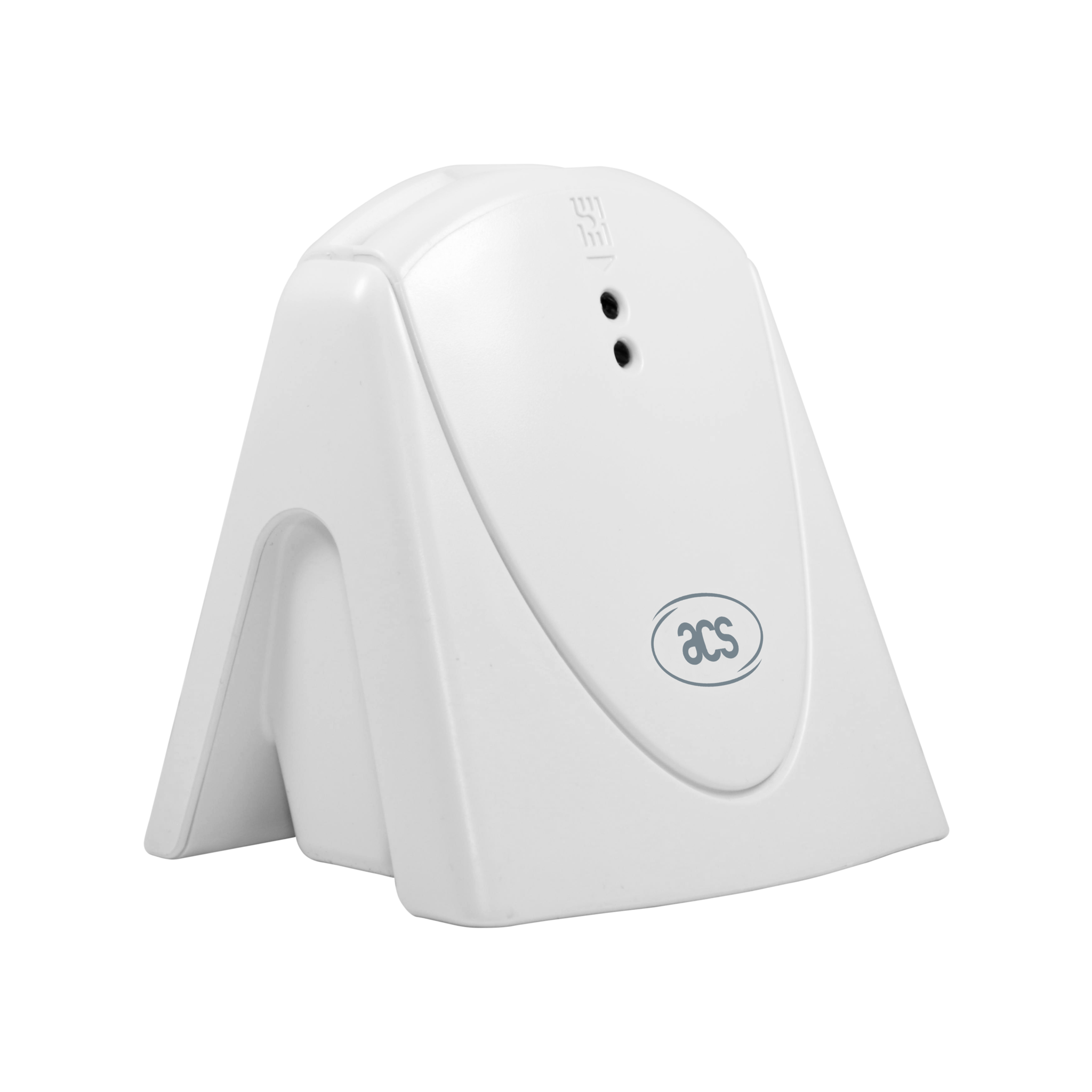

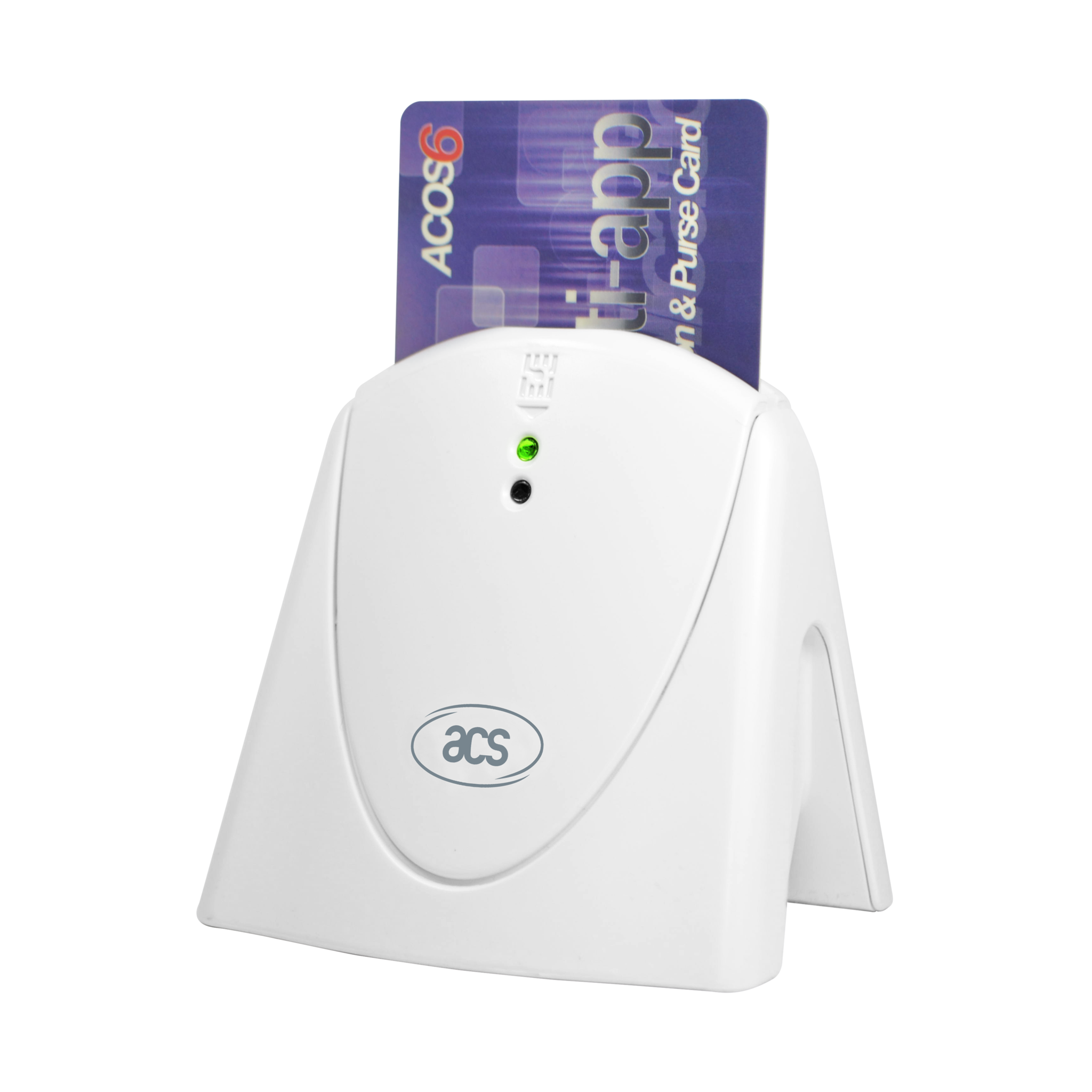

ACR39U-H1 is a smart card reader that enables upright insertion of smart cards, making it convenient to use for applications like e-Government, access control, and the like.

ACR39U-H1 supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V), microprocessor cards with the T=0 or T=1 protocol, and most memory cards. It also features a USB full speed interface and a smart card read/write speed of up to 600 Kbps. Highly durable, ACR39U-H1 can last for 100,000 card insertion cycles. ACR39U-H1 also has various certifications, such as EMVÃ Level 1 (Contact) and PBOC (People Bank of China), making it the ideal smart card reader for your e-Banking and e-Payment applications.

ACR39U-H1 is easy to install, use, and integrate in a computer-based environment. It is PC/SC and CCID-compliant with drivers that are compatible with operating systems such as Windows ®, Linux ® and Mac OS ®. In addition, ACR39U-H1 can also be used on mobile devices running on the Android platform versions 3.1 and later.

With its advanced features, ACR39U-H1 is the the ultimate smart card reader for your applications.

Features

• USB Full Speed Interface
• USB Type A Connector
• Plug and Play CCID support brings utmost mobility
• Smart Card Reader:
  • Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
  • Supports CAC (Common Access Card)
  • Supports SIPRNET Card
  • Supports J-LIS card
  • Supports microprocessor cards with T=0 or T=1 protocol
  • Supports memory cards
  • Supports PPS (Protocol and Parameters Selection)
  • Features Short Circuit Protection
• Contact Interface:
• Application Programming Interface:
• Supports PC/SC
• Supports CT-API (through wrapper on top of PC/SC)
• Supports Android 3.1 and later[1]

Technical specifications
